Arduino Code

Download the A4 Robot Code

The A4 robot arm code is available on GitHub. Clone the repository or download it as a zip file.

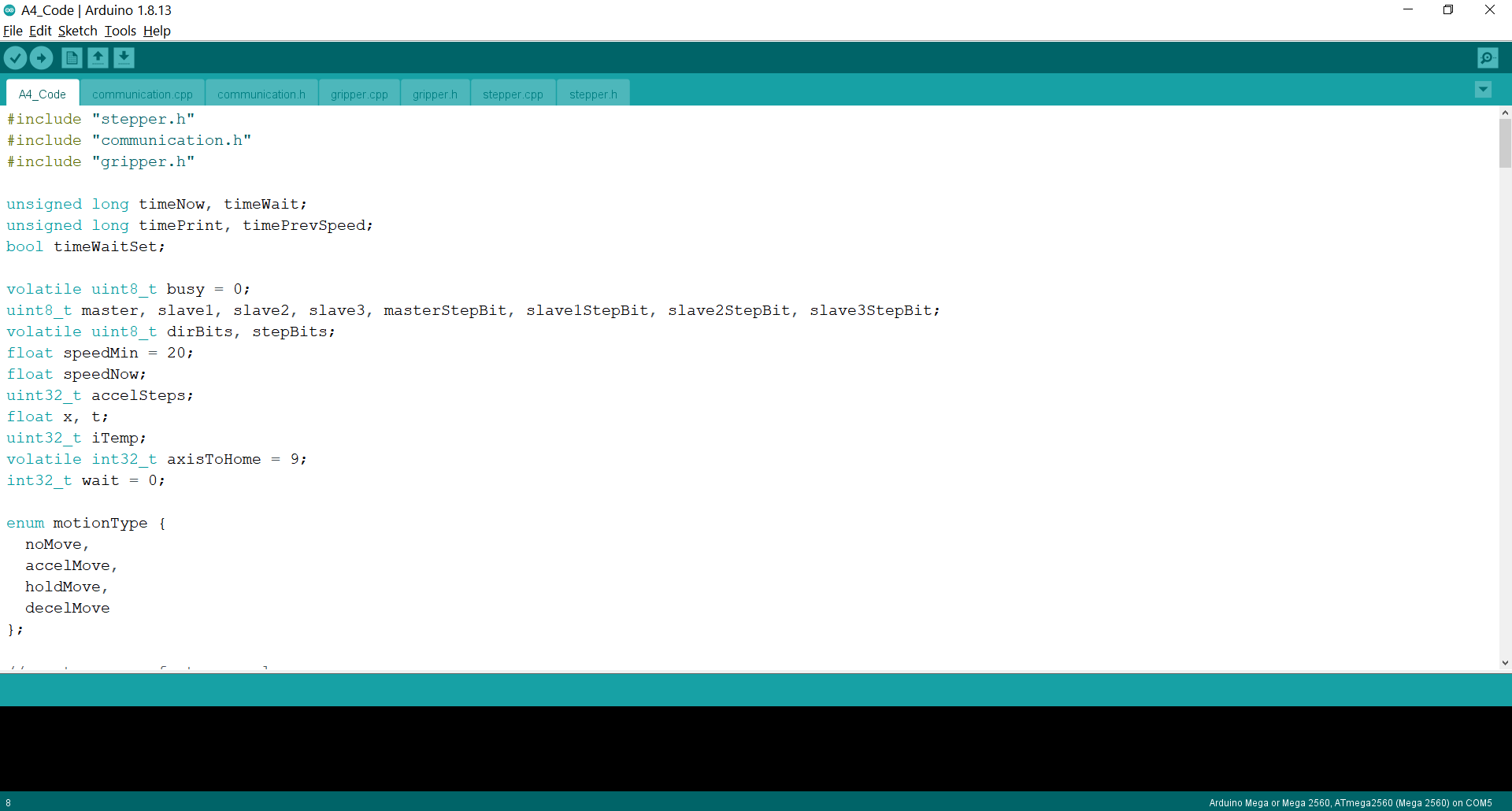

Open Code in Arduino IDE

If you don't have the Arduino IDE on your computer, you can download it from the Arduino website: arduino.cc/en/software

Arduino code

Connect Your Board

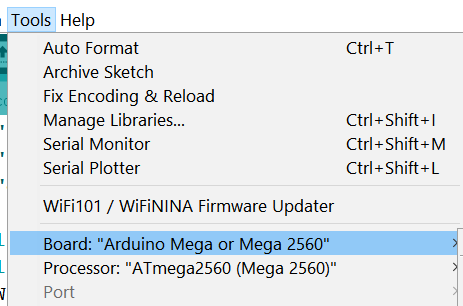

Connect to the board with a USB cable, and select the board and port in the Tools dropdown. Then upload the code to the board.

Arduino board

Connect Motor Power

Connect the motor power adaptor to the A4 PCBA.

motor power cable

Send Serial Commands

You can send serial commands at this point, or skip this part and use the GUI instead. Open the serial monitor and send a command to each motor to confirm all the joints are working. For exmaple: "M3A10" will move joint 3 to 10 degrees. The complete list of serial commands is on the next page.
