A4: Riser
A4-RISER-1.0
$2.52

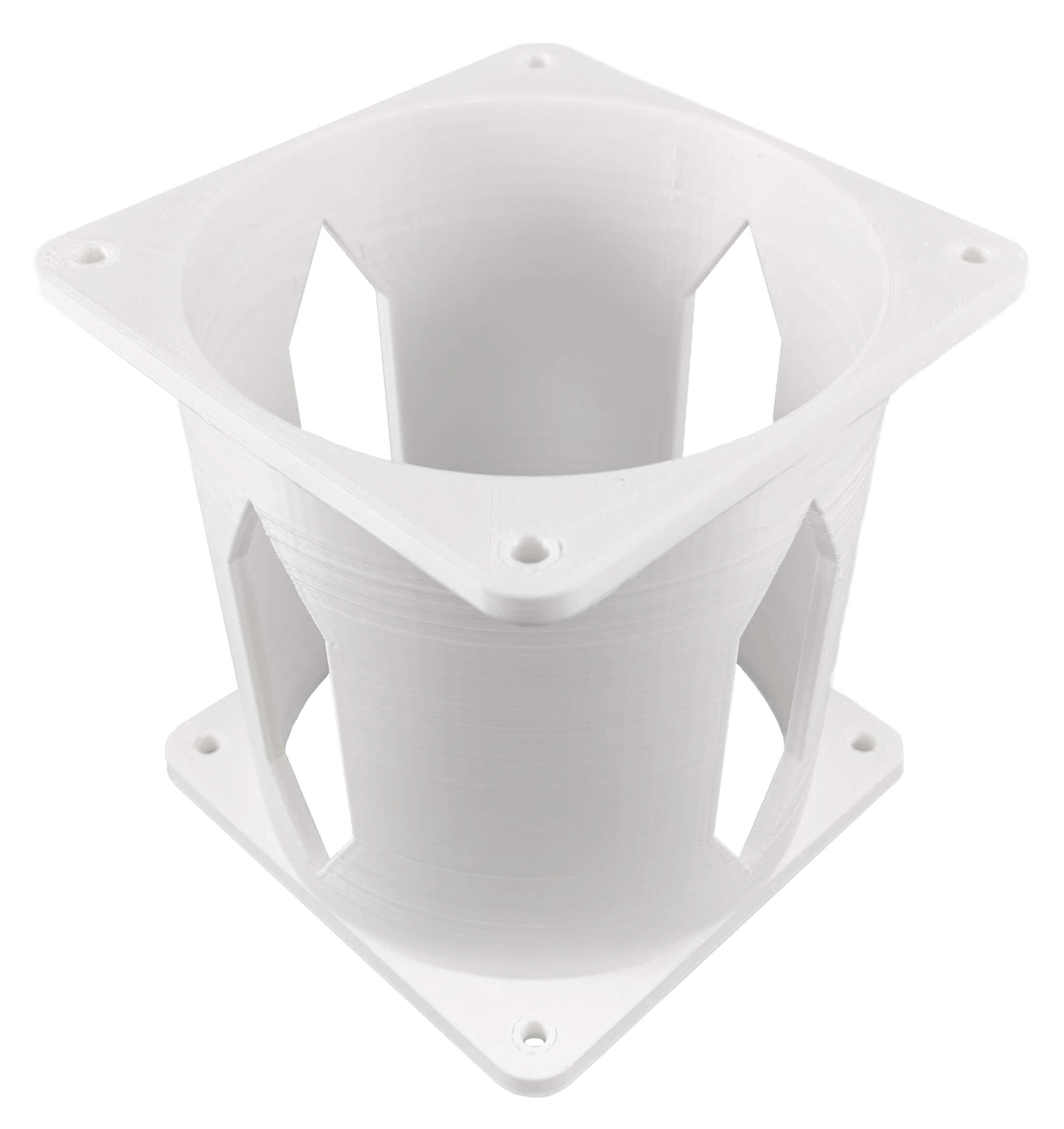

The riser of the A4 gives clearance for the J0 motor. Alternately, the J0 base can be mounted to a surface with a hole large enough for the motor, making the riser unnecessary.
Downloads/Links
A4 FreeCAD AssemblySTL File
A4 Manual
3D Printing Parameters
| Material | PLA |
| Layer Thickness | 0.2mm |
| Wall Thickness | 1.6mm |
| Top/Bottom Thickness | 1.6mm |
| Initial Layer Speed | 30mm/s |
| Print Speed | 60mm/s |
| Infill | 25% |
